How to Choose the Right Optical Communication Assembly?

Choosing the right Optical Communication Assembly begins with understanding the network’s real operating conditions. It is not simply a matter of selecting the fastest connector or lowest quoted price. A polished datasheet cannot reveal every installation challenge. Cable routing, vibration, dust, temperature, and service access all affect long-term performance. In practical deployments, a small mismatch between connector geometry and equipment ports can create signal loss, delays, and costly rework. That lesson is easy to overlook. The selection process should connect technical specifications with field experience and verified application requirements.

A dependable choice starts with compatibility. Confirm the fiber type, connector interface, polishing method, insertion loss, return loss, wavelength range, and transmission distance. Check whether the assembly supports single-mode or multimode operation. Also review bend radius, jacket material, pull strength, and fire-rating requirements. These details matter inside crowded data centers and outdoor cabinets. A reliable supplier should provide traceable test results, clear tolerances, and consistent manufacturing controls. Independent certifications can add confidence, but they should support engineering judgment rather than replace it.

Real installation feedback is equally valuable. Ask how the assembly performs after repeated mating, cleaning, and temperature changes. Inspect sample units before approving a larger order. Look for clean end faces, secure boots, accurate labeling, and stable strain relief. Small details matter. It is tempting to trust familiar brands completely, yet even reputable products may not suit every environment. I have found that supplier support, documentation quality, and replacement availability deserve the same attention as optical performance. The best decision balances present specifications with future maintenance, expansion, and risk control. Some assumptions will still need testing. That is part of choosing responsibly.

Table of Contents [Hide]

1 Define the Role of an Optical Communication Assembly

2 Match Fiber Type, Connector, and Transmission Requirements

3 Evaluate Performance, Compatibility, and Environmental Conditions

4 Compare Quality, Reliability, and Installation Requirements

5 Select the Assembly That Fits Your Network and Budget

Define the Role of an Optical Communication Assembly

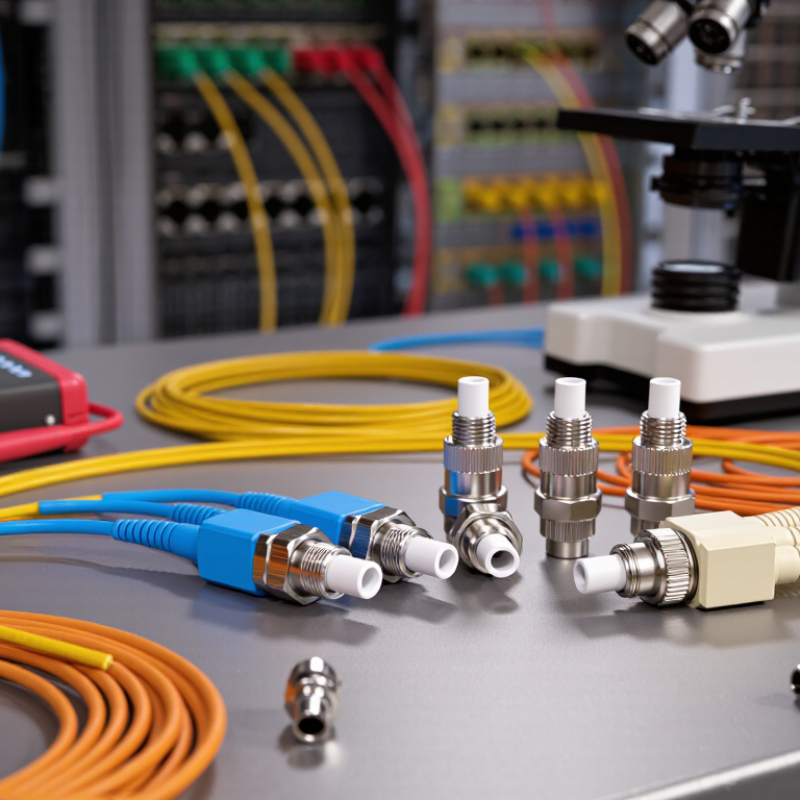

How to Choose the Right Optical Communication Assembly?

Define the Role of an Optical Communication Assembly

An optical communication assembly is more than a cable with connectors. It creates the physical path for transmitting data between switches, servers, routers, and transmission equipment. Its role includes signal continuity, alignment, protection, and installation control. A reliable assembly must preserve optical performance after repeated handling. Small connector contamination can create unexpected insertion loss.

The demand is substantial. The International Telecommunication Union’s Facts and Figures 2024 estimates that 5.5 billion people were online, representing 68% of the global population. Meanwhile, the International Energy Agency’s Electricity 2024 report projects data center electricity use could exceed 1,000 terawatt-hours by 2026. These figures increase pressure on network density, energy efficiency, and dependable links. The assembly supports these goals through accurate fiber alignment, appropriate bend protection, and controlled optical loss.

Selection should begin with the application, not the connector name. Check transmission distance, wavelength, fiber type, port density, environmental exposure, and service access. Single-mode fiber suits long-distance links, while multimode fiber often fits shorter data center runs. Polishing quality matters. So do pull strength and bend radius. I have seen a specification sheet look impressive, yet fail during installation because the cable was too rigid. That mistake is easy to repeat. Test reports should include insertion loss, return loss, geometry, and temperature performance. A lower purchase price can become expensive after rework, downtime, or early replacement.

Match Fiber Type, Connector, and Transmission Requirements

How to Choose the Right Optical Communication Assembly?

Choosing an optical communication assembly starts with the link, not the connector’s appearance. Define distance, data rate, wavelength, and installation conditions before selecting parts. Single-mode fiber suits long-distance links and tight loss budgets. Multimode fiber fits shorter runs, especially inside buildings. The wrong fiber can limit performance, even when every component looks well made. Small detail.

Connector selection must match the equipment, adapter panel, and cleaning routine. A connector should seat firmly without excessive force or visible gaps. Inspect polished end faces before installation, because dust can increase insertion loss. For dense panels, compact connectors may save space, but handling becomes less forgiving. I have seen a link pass a basic light test and fail under high-speed traffic. That result deserves investigation, not excuses. Check insertion loss, return loss, polarity, and bend radius with calibrated equipment.

Transmission requirements should guide the complete assembly. Compare receiver sensitivity with expected loss from fiber length, splices, connectors, and temperature changes. Select a cable jacket for the route: indoor, outdoor, or mechanically exposed. Verify polarity and fiber labeling at both ends; one reversed pair can waste hours. Record test readings, batch details, and inspection dates. A perfect match on paper may still fail if installation quality is poor. Recheck assumptions when the link behaves strangely. Reliable choices come from measured margins, compatible interfaces, and realistic field conditions.

How to Choose the Right Optical Communication Assembly? - Match Fiber Type, Connector, and Transmission Requirements

Use the application, optical standard, distance, wavelength, connector interface, and installation environment together when selecting a fiber optic communication assembly.

Fiber Type	Common Fiber Grade	Typical Wavelength	Typical Data-Transmission Use	Typical Reach Guidance	Recommended Connector Options	Insertion Loss Target	Best-Fit Environment	Selection Notes
Multimode	OM1 62.5/125 µm	850 nm and 1300 nm	Legacy Ethernet, Fibre Channel, and short-distance data links	Generally suitable for short links; exact distance depends on the transceiver and protocol	LC, SC, ST, and MPO/MTP-style multi-fiber interfaces	Typically ≤ 0.30 dB per mated pair for a low-loss assembly	Legacy enterprise networks, control systems, and existing OM1 installations	Use only when the installed equipment and cabling system support OM1. It is not normally selected for new high-speed installations.
Multimode	OM2 50/125 µm	850 nm and 1300 nm	Short-reach Ethernet and Fibre Channel links	Short to moderate distances, subject to the network standard and transceiver specification	LC, SC, ST, and MPO/MTP-style multi-fiber interfaces	Typically ≤ 0.30 dB per mated pair for a low-loss assembly	Existing building networks and data-center links using OM2 cabling	Confirm the installed fiber grade before ordering. OM2 should not be mixed casually with other multimode grades in performance-critical links.
Multimode	OM3 Laser-optimized 50/125 µm	850 nm	10 GbE and other short-reach high-speed data-center applications	Up to approximately 300 m for 10GBASE-SR under specified channel conditions	LC duplex for two-fiber links; MPO/MTP-style connectors for parallel-optics links	Typically ≤ 0.30 dB per mated pair; lower-loss options are available	Data centers, server rooms, and structured cabling systems	A practical choice for many 10 Gb/s multimode links. Verify polarity and fiber count when using multi-fiber assemblies.
Multimode	OM4 Laser-optimized 50/125 µm	850 nm	High-speed Ethernet, Fibre Channel, and parallel-optics data-center links	Up to approximately 400 m for 10GBASE-SR under specified channel conditions	LC duplex or MPO/MTP-style connectors, depending on the optical architecture	Typically ≤ 0.30 dB per mated pair; low-loss versions support tighter power budgets	High-density data centers and higher-speed multimode backbones	Provides more modal bandwidth than OM3 and may offer additional reach margin for short-reach high-speed systems.
Multimode	OM5 Wideband 50/125 µm	850 nm and selected short-wave wavelengths such as 953 nm	Short-reach multimode systems using wavelength-division multiplexing	Application-dependent; reach must be checked against the transceiver and approved cabling channel	LC duplex and MPO/MTP-style connectors	Typically ≤ 0.30 dB per mated pair for a low-loss assembly	New data-center designs evaluating short-wave wavelength multiplexing	Do not assume OM5 automatically increases reach for every 850 nm application. Match the fiber and transceiver specifications.
Single-mode	OS2 9/125 µm	1310 nm, 1490 nm, 1550 nm, and other application-specific bands	Metro, access, telecom, long-distance Ethernet, and high-speed data-center links	From several kilometers to many tens of kilometers, depending on optics, loss budget, and dispersion limits	LC duplex, SC duplex, FC, and MPO/MTP-style single-mode interfaces	Typically ≤ 0.30 dB per mated pair; premium assemblies may specify lower values	Outside plant, campus networks, telecom rooms, and long-distance interconnects	The preferred general-purpose choice for long reach. Confirm whether the network requires UPC or APC end faces.
Single-mode	Bend-insensitive single-mode fiber	Commonly 1310 nm and 1550 nm	High-density routing, access networks, and installations with tight cable-management paths	Comparable to the associated single-mode application when supported by the equipment	LC, SC, and other single-mode interfaces; APC may be required for some access systems	Typically ≤ 0.30 dB per mated pair, with bend performance specified separately	Dense racks, cabinets, distribution frames, and constrained pathways	Check the minimum bend radius of the complete assembly, not only the bare fiber specification.
Single-mode	Polarization-maintaining fiber	Application-specific, commonly around 1310 nm or 1550 nm	Coherent detection, sensing, interferometry, and polarization-sensitive equipment	Determined by polarization extinction ratio, optical loss, and the system design	FC, LC, or other keyed connectors with controlled angular alignment	Application-specific; connector alignment and extinction performance are critical	Laboratory, sensing, measurement, and specialized communications systems	Specify connector key orientation, polarization axis alignment, and required polarization extinction ratio.
Multi-fiber Assembly	OM3, OM4, OM5, or OS2 trunk	Depends on the installed fiber and optical modules	Parallel optics, high-density switch interconnects, and structured data-center cabling	Depends on fiber grade, fiber count, optical standard, and total channel loss	MPO/MTP-style connectors, often converted to LC fan-outs	Commonly specified as low-loss or standard-loss per connector pair	High-density racks, pre-terminated cabling, and modular data centers	Define fiber count, key orientation, gender, polarity method, pin configuration, and breakout length before ordering.
Ruggedized Assembly	Multimode or single-mode, application-dependent	Determined by the fiber and transceiver	Industrial Ethernet, outdoor radio links, transportation, and harsh-location networks	Determined by the optical standard and environmental loss budget	Ruggedized LC, SC, or specialized sealed interfaces	Must be evaluated together with connector sealing and repeated-mating requirements	Outdoor cabinets, industrial equipment, vibration-prone areas, and exposed pathways	Specify ingress protection, temperature range, UV resistance, tensile strength, vibration rating, and cable jacket type.

Evaluate Performance, Compatibility, and Environmental Conditions

Choosing the right optical communication assembly requires more than matching connector shapes. Performance must fit the actual network, not an ideal laboratory setup. Check insertion loss, return loss, bandwidth, transmission distance, and operating wavelength. Ask for measured test data, not only catalogue ratings. A small loss increase across several connections can weaken the received signal.

Compatibility deserves careful inspection. Confirm connector type, fiber mode, polishing style, cable diameter, and transceiver specifications. A connector may look suitable yet fail because of incorrect alignment or incompatible fiber construction. I once treated a mechanical match as proof of system compatibility. It was not. Always verify the complete optical path, including adapters, patch panels, and cleaning requirements.

Environmental conditions can change performance over time. Review temperature range, humidity, vibration, dust exposure, and installation space. Outdoor assemblies may need stronger jackets, sealed structures, and resistance to ultraviolet exposure. In a factory, oil mist and repeated movement can matter more than extreme temperature. Test assemblies under realistic conditions when possible. A short thermal cycle and bend test may reveal weaknesses early. Do not overlook maintenance access. Difficult cleaning or inspection can create avoidable signal problems. Some specifications also need independent verification, because published values may not reflect every installation condition.

Compare Quality, Reliability, and Installation Requirements

How to Choose the Right Optical Communication Assembly?

Choosing an optical communication assembly requires more than checking transmission speed. In field installations, connector quality often determines whether a link remains stable after months of vibration, dust, and temperature changes. Inspect the end face under magnification. Small scratches or contamination can increase insertion loss. A clean, accurately polished interface matters.

Reliability should be measured against the real environment. Check operating temperature, bend radius, tensile strength, and moisture resistance. Ask for documented test results, not only attractive specifications. Reputable suppliers should provide loss measurements, return-loss data, material details, and traceable inspection records. I once trusted a low-cost assembly because its optical figures looked acceptable. It failed during repeated cable movement. The datasheet was not wrong, but it was incomplete.

Installation requirements deserve equal attention. Confirm connector type, cable length, routing space, and cleaning procedures before ordering. Tight enclosures may need smaller boots or angled connectors. Long outdoor routes may require stronger jackets and additional protection. Technicians should receive clear handling instructions, especially for bend limits and end-face cleaning. Practice helps. However, installation plans can still miss a cramped tray or an unexpected pull force. Leave practical space for maintenance, and review the design with the person who will actually install it.

Select the Assembly That Fits Your Network and Budget

How to Choose the Right Optical Communication Assembly?

The right optical communication assembly should fit both your network design and your budget. Start by confirming fiber type, connector style, operating wavelength, and required transmission distance. A single-mode assembly may suit long-distance links, while multimode options can reduce costs inside shorter data-center runs. Check insertion loss, return loss, bend radius, and temperature ratings before ordering. These details affect signal stability more than appearance.

Tips: Ask for test data and clear specifications. Compare total installation cost, not only unit price. Keep spare assemblies for urgent repairs. Label every link before deployment. Small details matter.

In field testing, I have seen low-cost assemblies create unstable links after repeated handling. The initial saving disappeared during troubleshooting. Still, the most expensive option is not always the best choice. Match performance to actual network demands, then leave reasonable room for future upgrades.

Confirm connector polish and cable length carefully; a poor fit can cause unnecessary bends near the rack. Review the supplier’s quality process, inspection records, and replacement terms. Reliable documentation supports better decisions when network conditions change. There is no perfect assembly for every project. A practical choice balances verified performance, installation needs, and available funds.
