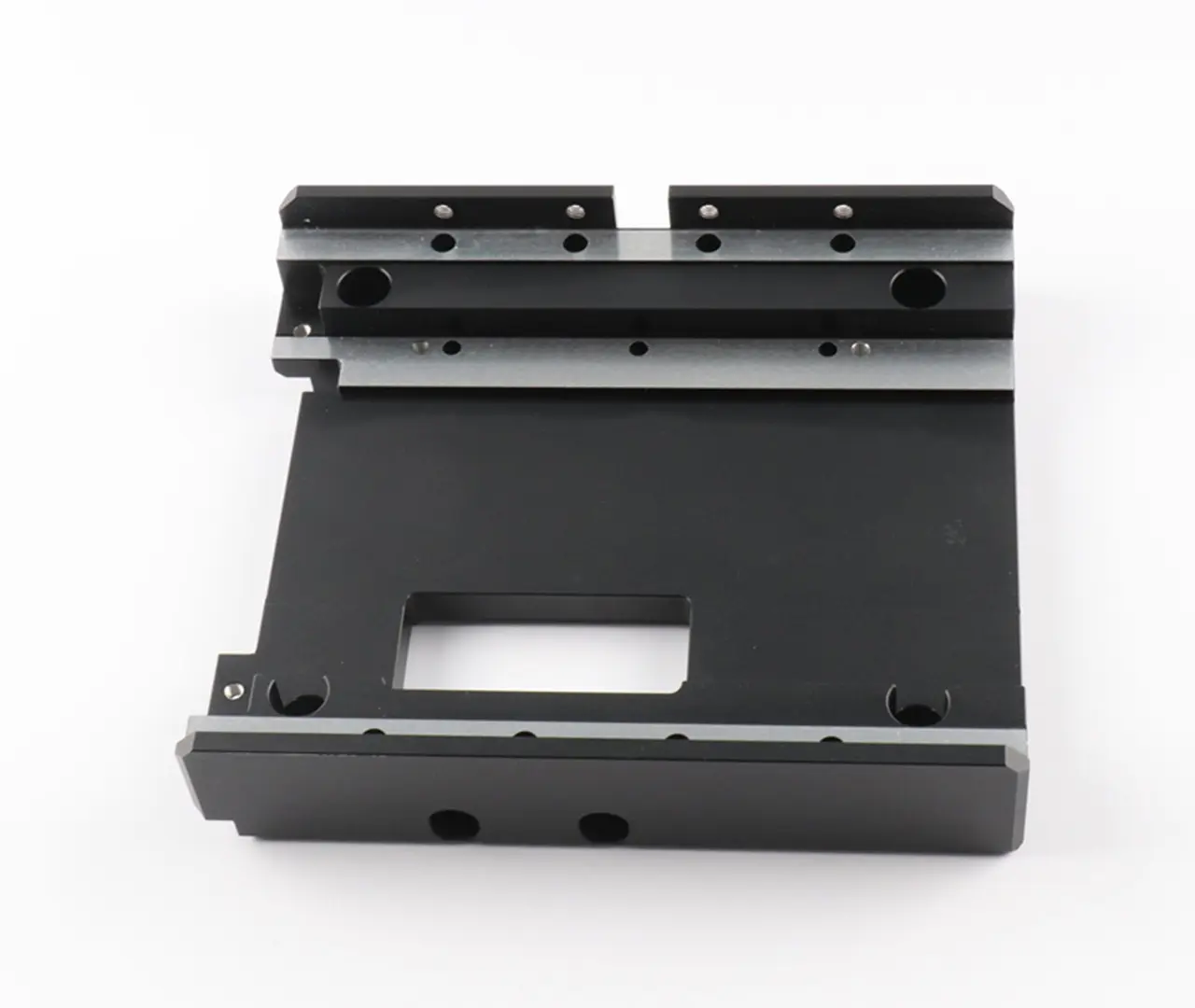

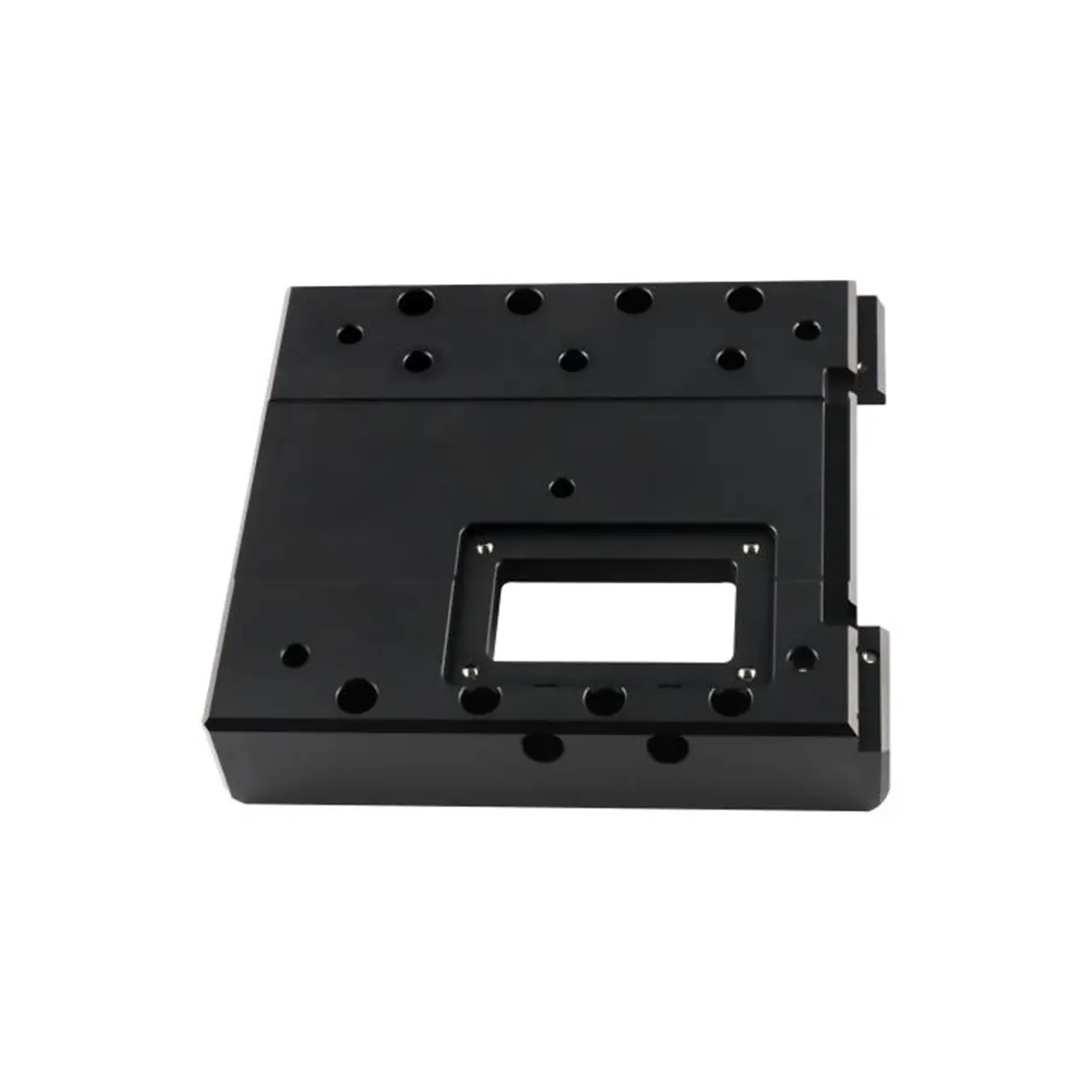

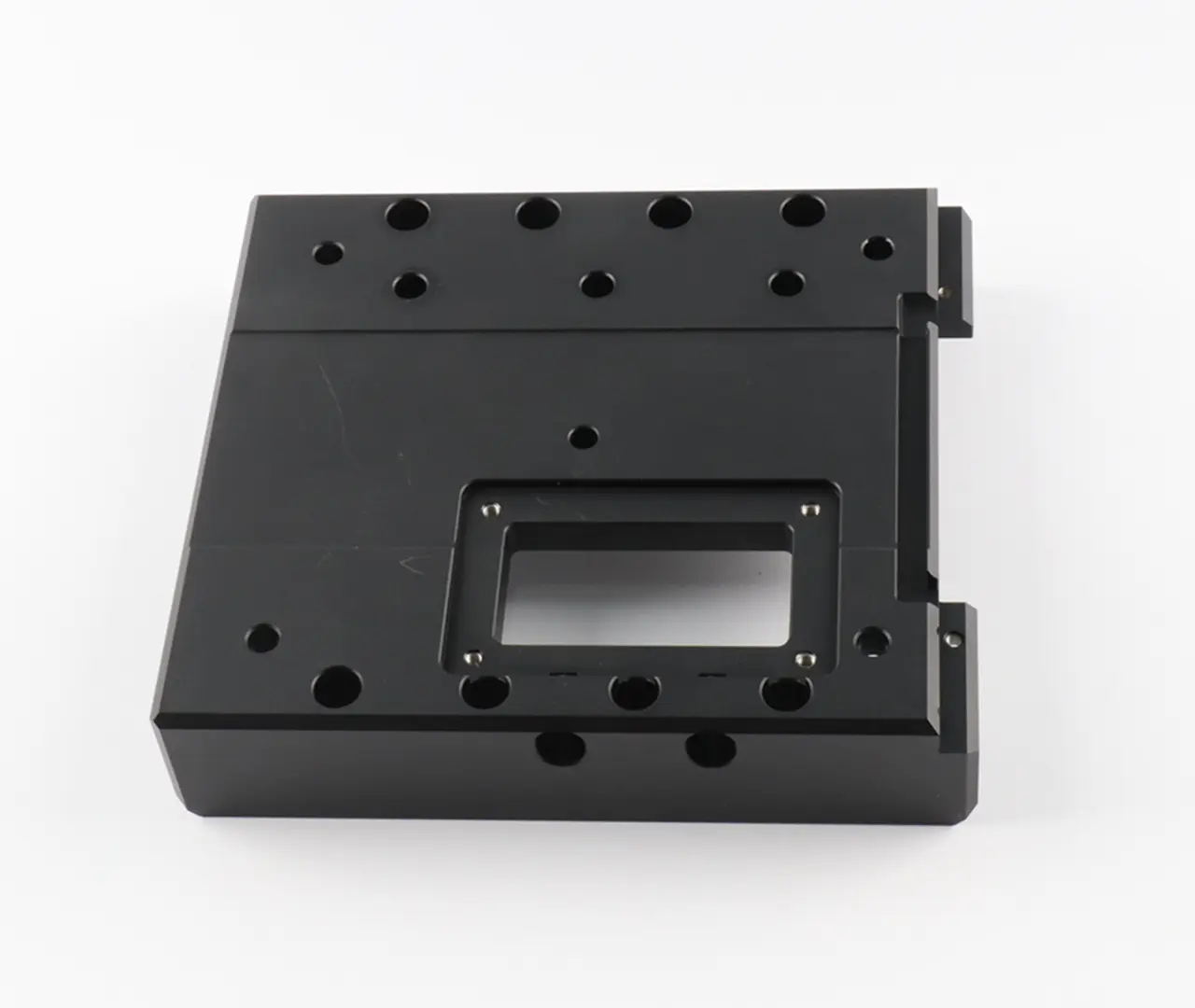

X-Axis Upper Plate (7075-T6 High-Strength Aluminum Alloy Precision Component)
Product Overview
The X-axis upper plate is a core component within a precision slide system, directly influencing the equipment’s motion accuracy and service life. Manufactured from 7075-T6 aerospace-grade high-strength aluminum alloy, with dimensions of 144mm × 125mm × 16.5mm, it combines lightweight characteristics with superior strength, making it an ideal choice for aerospace and high-end equipment manufacturing.
With a tensile strength of 572MPa and yield strength of 503MPa, 7075-T6 offers three times less density than steel while maintaining excellent mechanical performance. However, transforming this advanced material into a micro-precision sliding part presents significant engineering challenges.
Manufacturing Challenges
Stress Control
7075-T6 tends to generate residual stresses during thermal and mechanical processing, often leading to part distortion or warping if not properly treated.
Micron-Level Accuracy
The guide rail mounting surfaces and other critical features must achieve geometric tolerances within 0.006mm—equivalent to one-tenth the diameter of a human hair.
Surface Durability & Protection
Long-term operation requires outstanding resistance to wear and corrosion, while reducing reflective glare to ensure stable system performance.
Our Solutions
Multiple Stress Relief Treatments
Multi-stage machining combined with stress-relief heat treatment ensures dimensional stability throughout the precision manufacturing process.

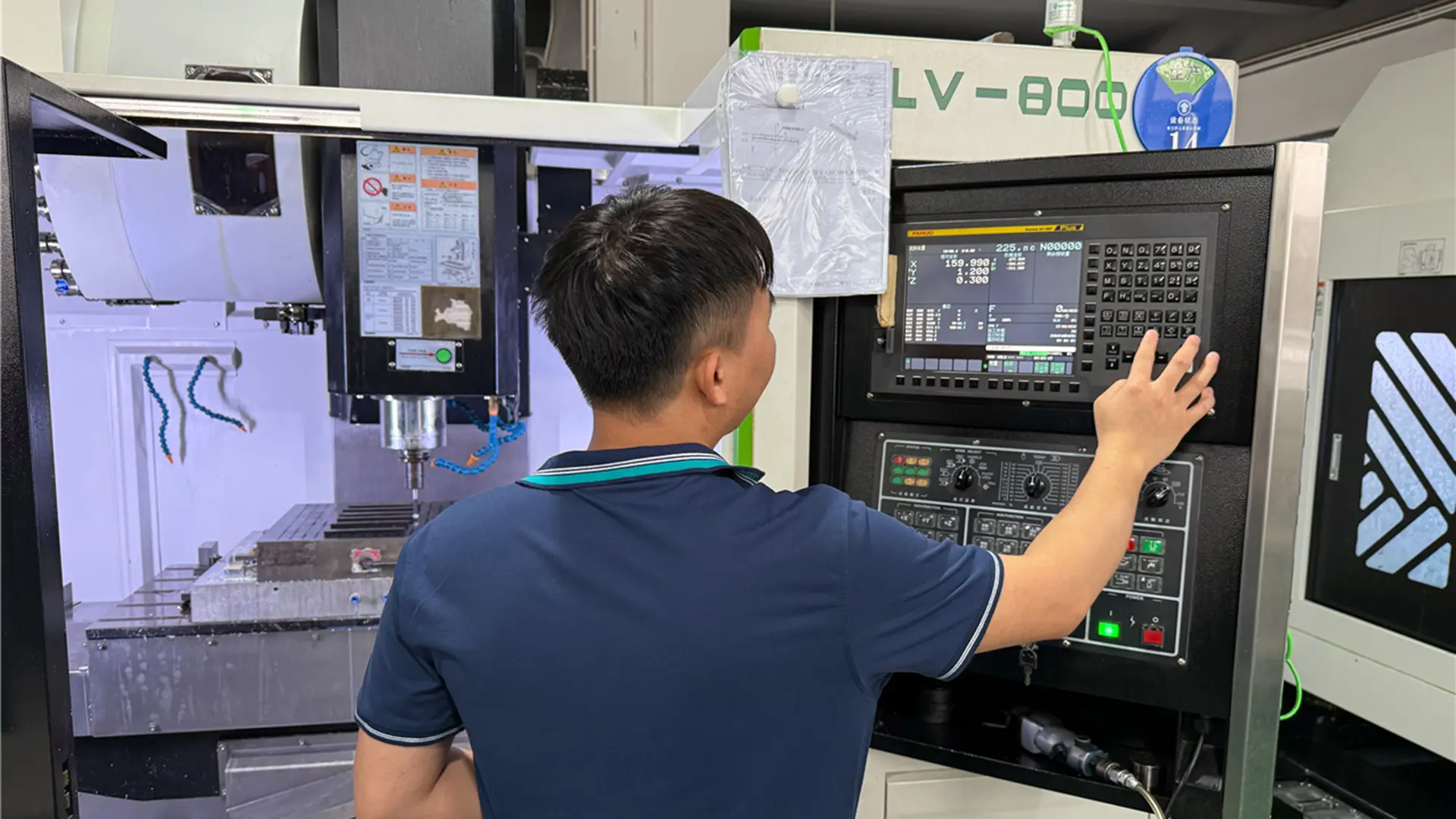

Micron-Level Machining & Grinding
Controlled material removal using ultra-fine cutting parameters, followed by surface finishing and precision grinding of critical areas, guarantees stable tolerances within 0.006mm.
Advanced Surface Treatment
A hard matte black anodized coating with a minimum thickness of 25μm and hardness of HV300–500 enhances resistance to wear and corrosion, while the matte finish minimizes light reflection during operation.
Quality Assurance
Every X-axis upper plate undergoes a strict quality control process, including:
Salt Spray Testing – corrosion resistance verification
Coating Thickness Measurement – uniform oxide layer control
Hardness Testing – wear resistance and strength validation

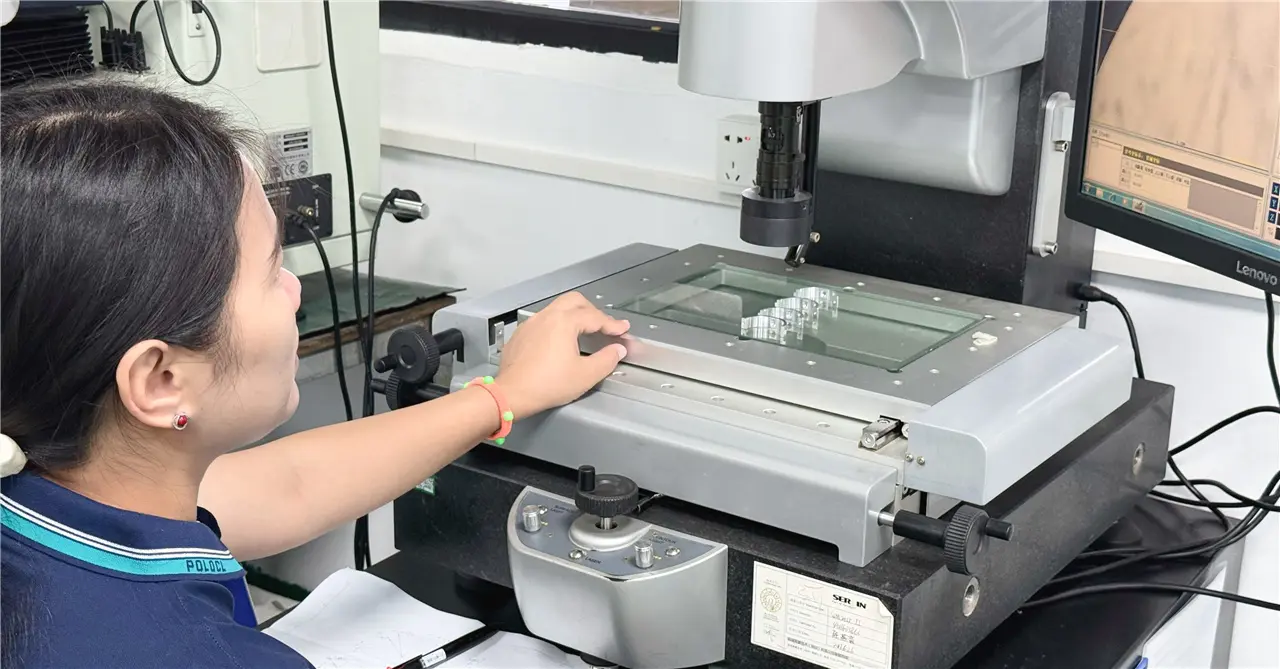

Full Dimensional Inspection – ensuring compliance with design tolerances
This ensures consistent reliability and performance in every delivered part.
Application Value
Aerospace Systems – lightweight yet strong, enabling micro-precision movement in critical assemblies.
High-End Precision Equipment – stable sliding performance, extended system lifetime.
Automation & Semiconductor Industry – meeting the highest demands for accuracy and reliability.
Case Summary
This project highlights our expertise in high-performance aluminum alloy precision machining. By mastering the unique properties of 7075-T6 and applying advanced stress control and finishing techniques, we deliver components that combine lightweight design, durability, and micron-level accuracy—empowering our customers with dependable solutions for their most demanding applications.
