Optical Path Reference Support P1-VER3 Flange Version (6061 Aluminum Alloy)
Product Overview

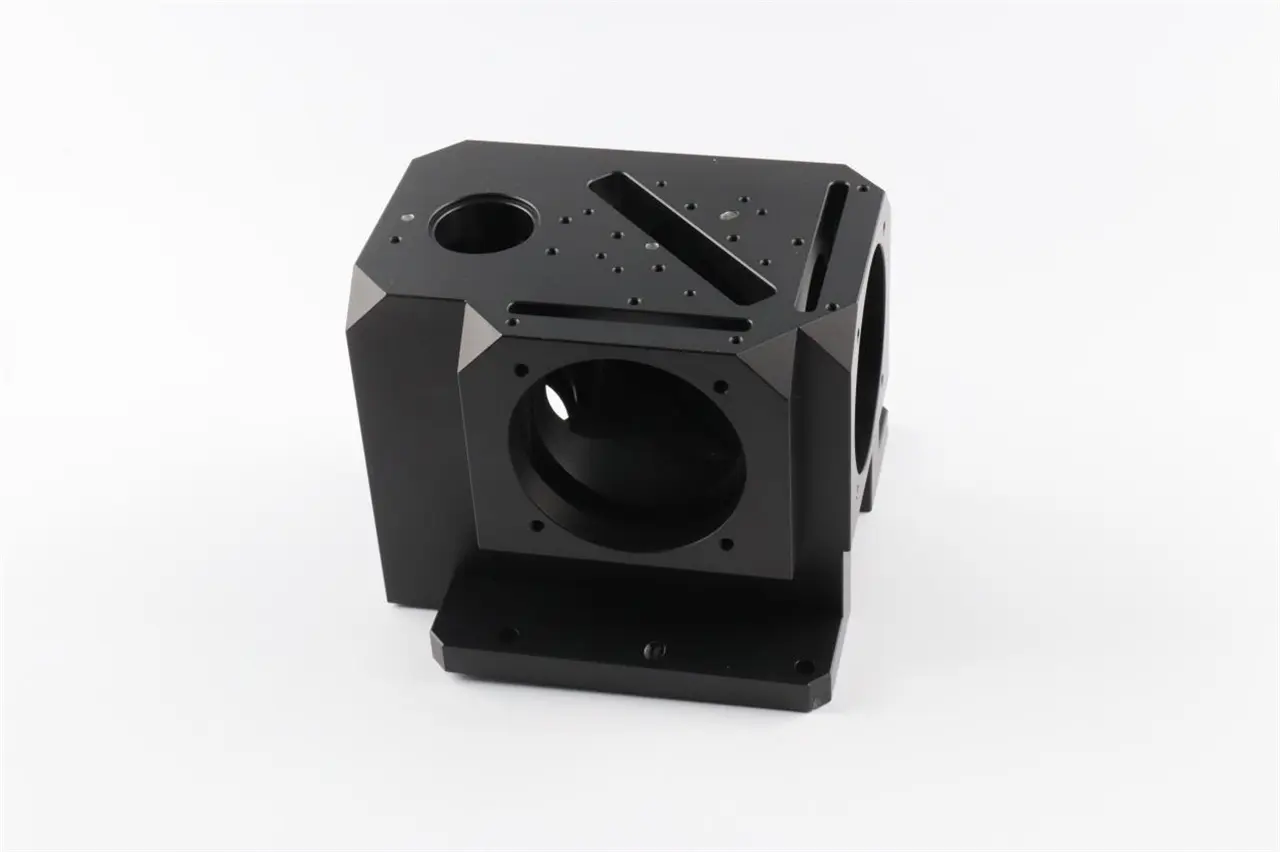

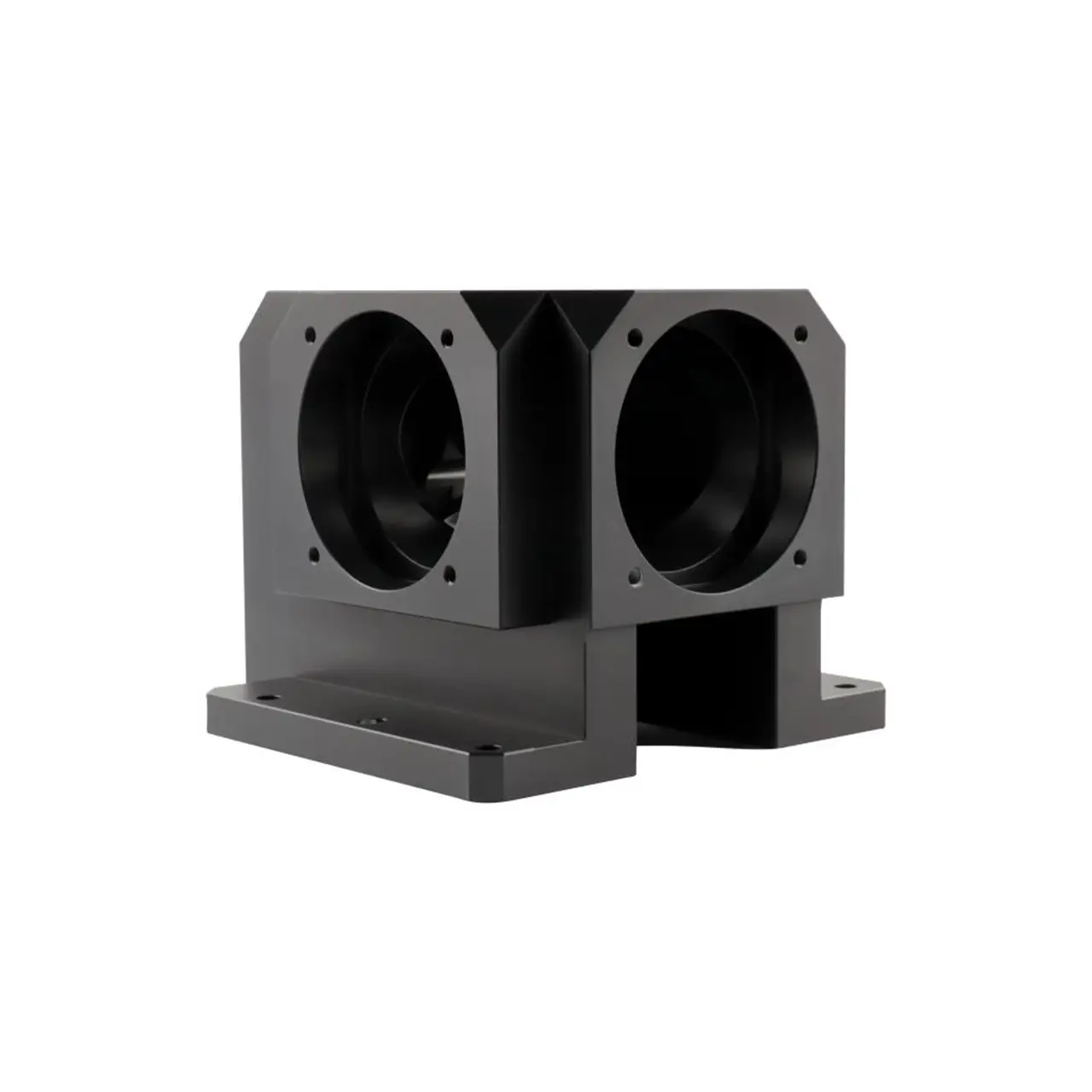

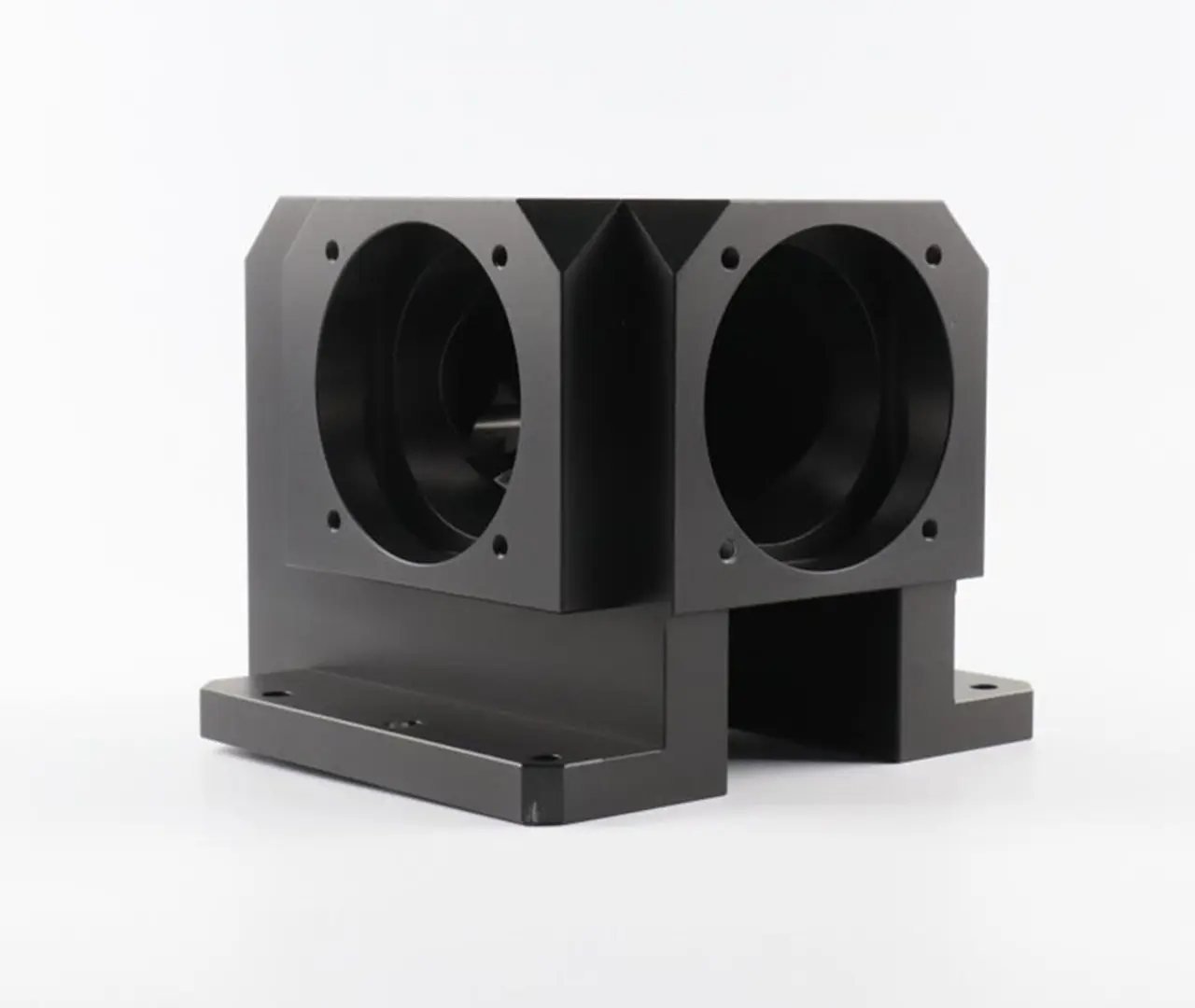

The optical path reference support (P1-VER3 flange version) is a precision optical accessory designed to provide stable and accurate positioning for optical components. In optical system assembly, it ensures the relative positioning accuracy of lenses and mirrors, thereby maintaining the accuracy and stability of light paths.
Widely applied in optical experimental setups, precision measurement instruments, and advanced optical equipment, this component plays a critical role in guaranteeing reliable optical performance.
The part measures 131 × 126 × 106 mm and is designed with mounting holes on all four sides, enabling secure installation of optical lenses. Since even the slightest positional deviation can compromise light path alignment, tight relative positioning accuracy is the primary manufacturing challenge.
Manufacturing Challenges
High-Precision Hole Positioning
Any misalignment in the hole locations directly impacts optical path accuracy.
Residual Stress Control
Internal stresses introduced during machining can lead to deformation, reducing positional accuracy over time.
Complex Multi-Surface Machining
Multiple mounting faces require precision machining while minimizing cumulative errors from repeated clamping.
Our Solutions
Three-Axis CNC Rough Machining
Efficiently removes material to form the near-net shape, laying the groundwork for subsequent high-precision processes.
Aging (Stress Relief) Treatment
Heat–mechanical processing at controlled temperatures and durations eliminates residual stress, preventing deformation during finishing and use.
Five-Axis CNC Precision Machining
Multi-surface, one-time setup machining reduces errors from re-clamping. With superior motion control, the five-axis system ensures micron-level accuracy across all mounting holes and surfaces.
Quality Assurance
Every optical path reference support undergoes rigorous checks:
Dimensional Accuracy Testing – verifying hole positions and relative spacing
Stress-Relief Validation – ensuring dimensional stability after thermal cycles
Surface & Finish Inspection – guaranteeing burr-free, smooth surfaces suitable for optical applications
Assembly Simulation – validating accurate alignment with optical components
Application Value
Optical Experiments & Research – reliable support ensures accurate and repeatable results.
Optical Measurement Instruments – high precision positioning guarantees stable optical performance.
High-End Optical Equipment – durability and dimensional stability meet the stringent requirements of advanced optical systems.
