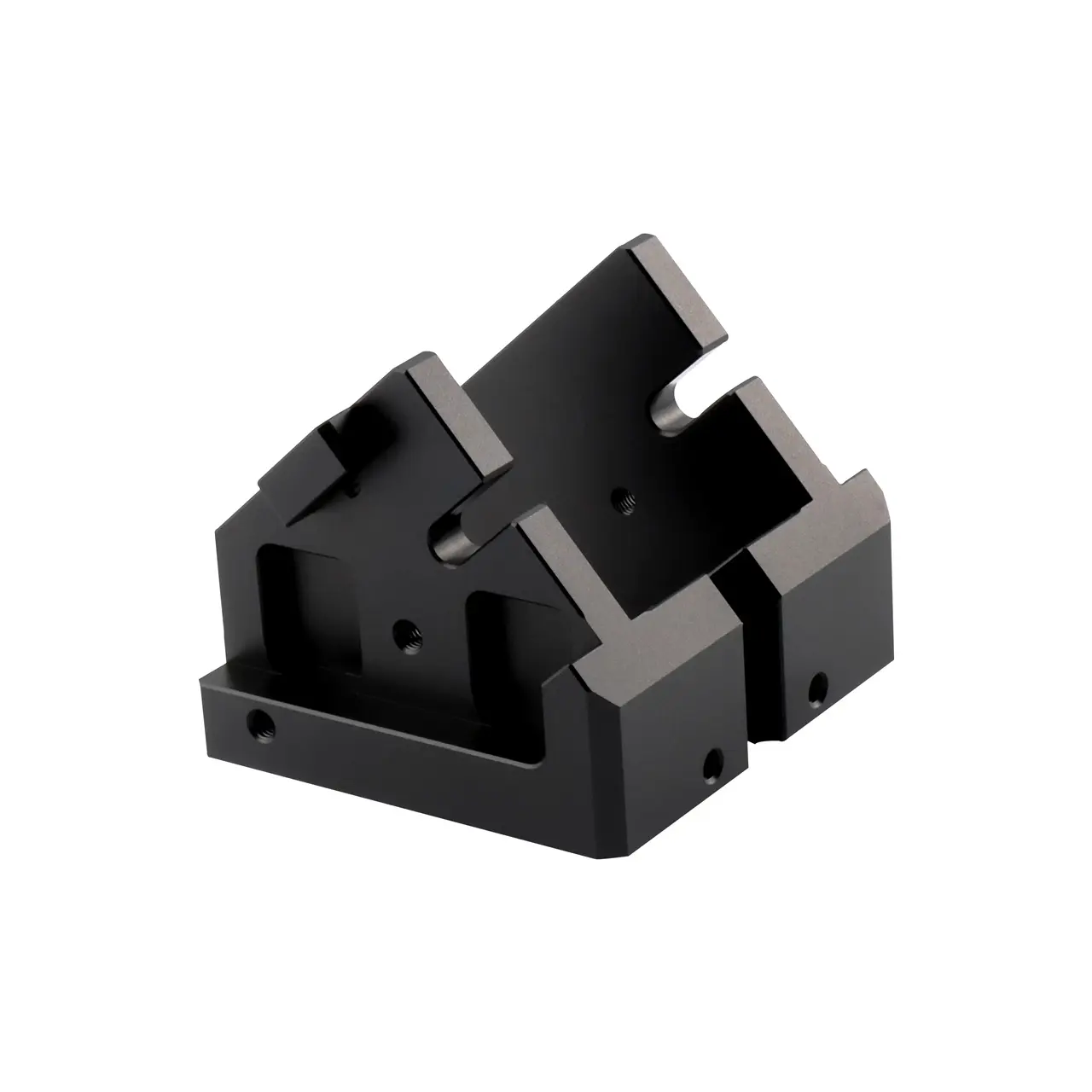

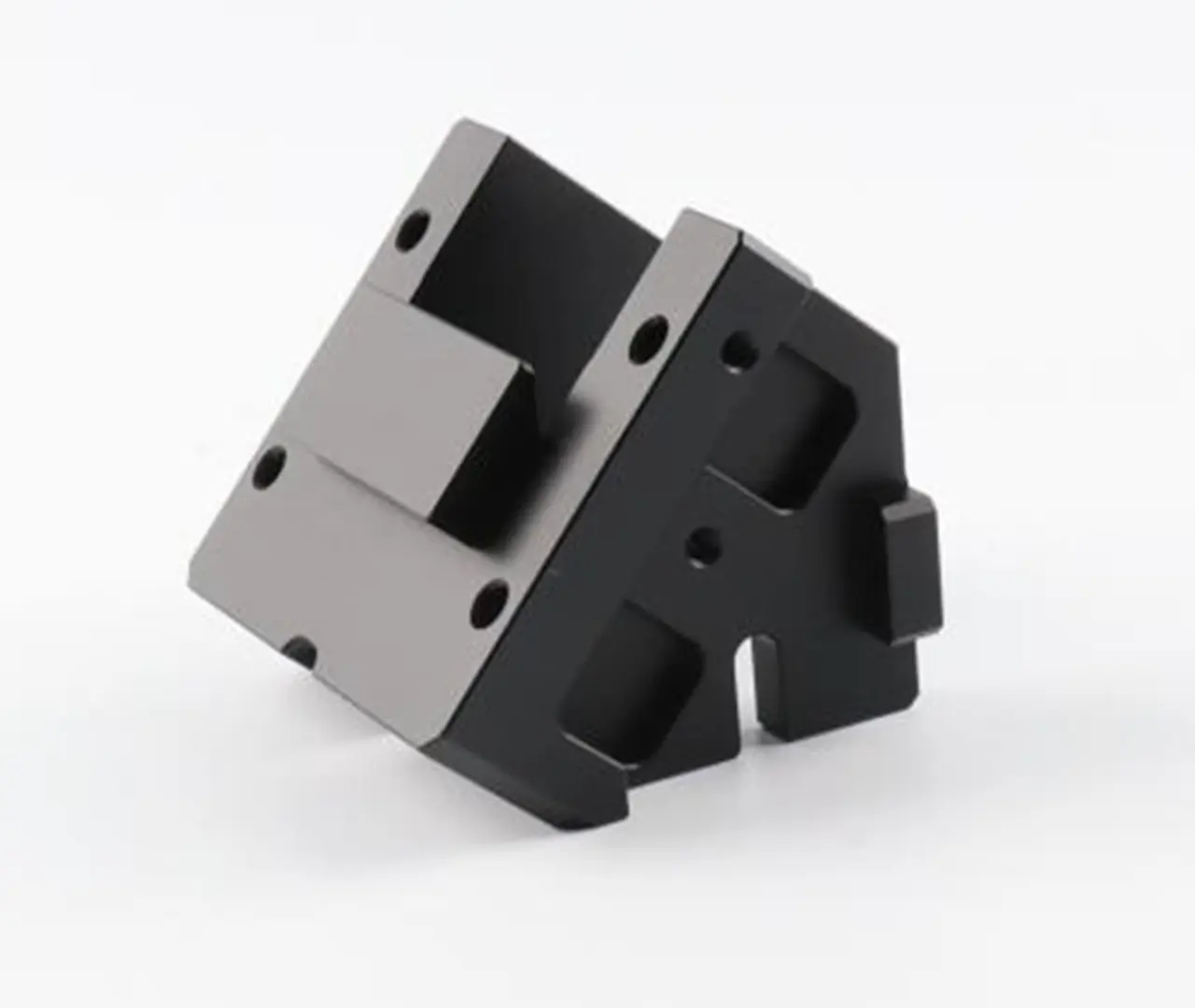

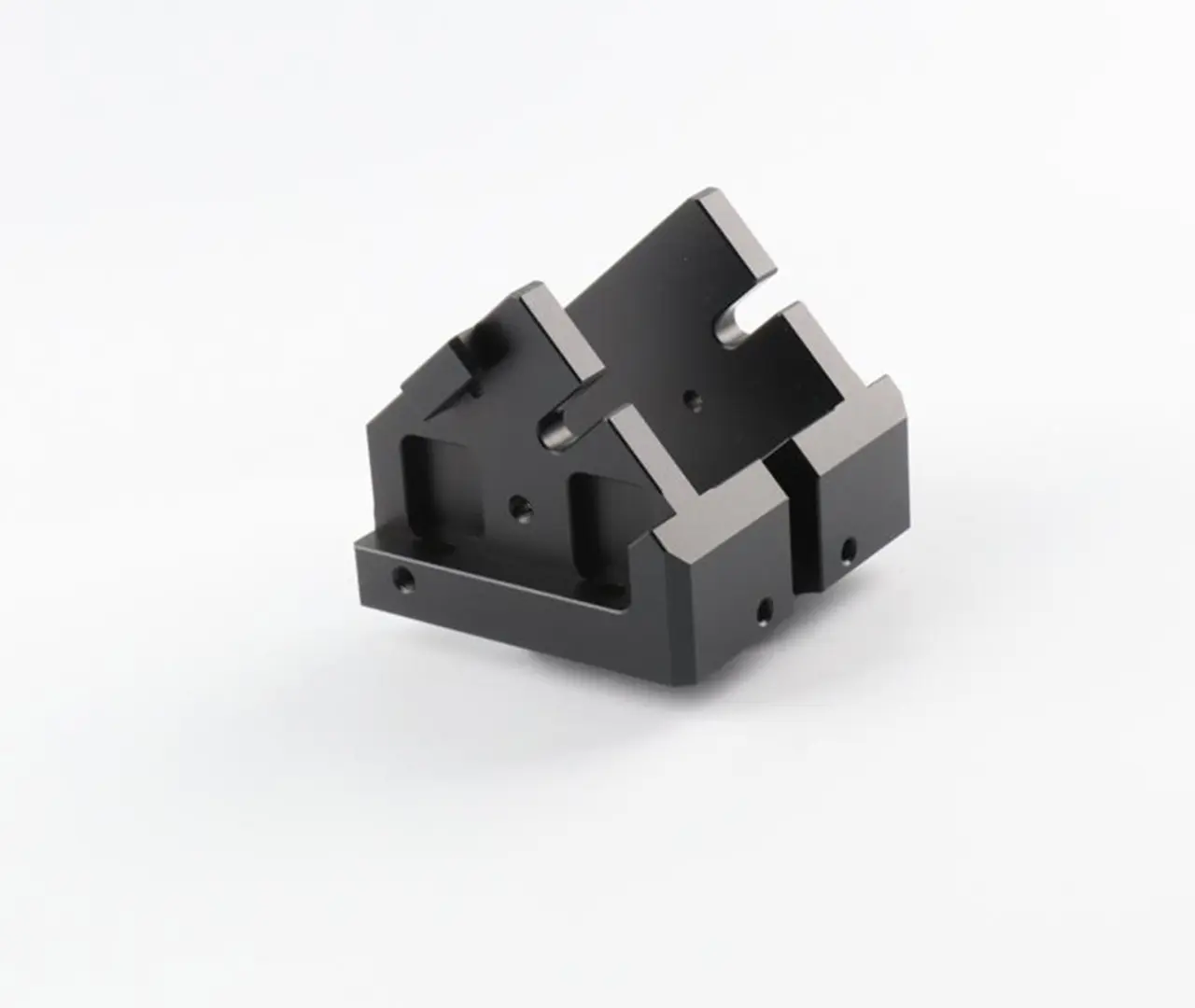

AF Mirror Mount (6061-T6 Aluminum Alloy)
Product Overview
The AF mirror mount is a precision optical component designed for 45° reflective mirror assemblies, serving as a critical element to achieve optical path redirection. Widely applied in laser processing equipment, optical imaging systems, and optical measurement instruments, the mount ensures accurate light guidance along predetermined paths. This precision is fundamental to maintaining system performance and reliability.
Manufactured from 6061-T6 aluminum alloy, the component offers excellent strength, machinability, and dimensional stability. With overall dimensions of 47 × 45 × 45 mm, the mount is engineered for both structural rigidity and optical accuracy.
High-precision positioning of the reflective mirror is essential for stable optical paths. To guarantee this, dimensional accuracy during manufacturing is tightly controlled, particularly in the hole positions on two different surfaces, where tolerances are restricted to ±0.01 mm.
Manufacturing Challenges
Extreme Precision Requirements
Hole positioning across different surfaces demands sub-±0.01 mm accuracy.
Complex Geometry
Multiple machined surfaces and intersecting features require high-level CNC strategies to avoid misalignment.
Tolerance Control in Production
Maintaining consistent precision across batches under such strict tolerances is highly challenging.
Our Solutions
Five-Axis CNC Machining
Advanced five-axis machining centers enable single-setup processing, minimizing errors from multiple clamping operations.
Optimized Machining Strategies
Cutting parameters and tool paths are tailored for 6061-T6 aluminum, ensuring stability and preventing deformation.
Real-Time Dimensional Monitoring

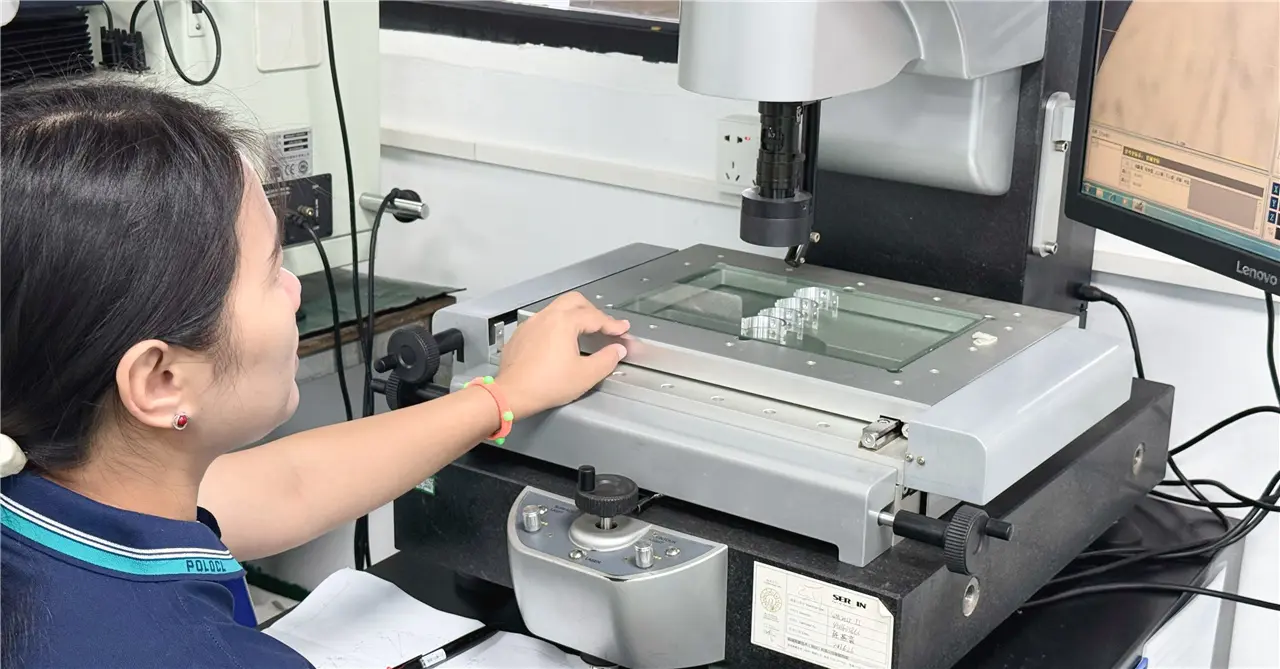

High-precision measurement instruments are employed during machining to track critical dimensions and control tolerances within ±0.01 mm
Quality Assurance
Each AF mirror mount undergoes:
Dimensional Inspection – verification of hole positioning and alignment accuracy.
Surface Quality Check – ensuring smooth finishes with no scratches or burrs.
Tolerance Verification – confirming compliance with the ±0.01 mm precision requirement.
Application Value
Laser Processing Systems – ensures accurate beam redirection for high-performance cutting and engraving.
Optical Imaging Devices – maintains stability and accuracy of optical pathways.
Measurement Instruments – enables reliable reflection and transmission of light signals.
