9K Camera Base (303 Stainless Steel)
Product Overview

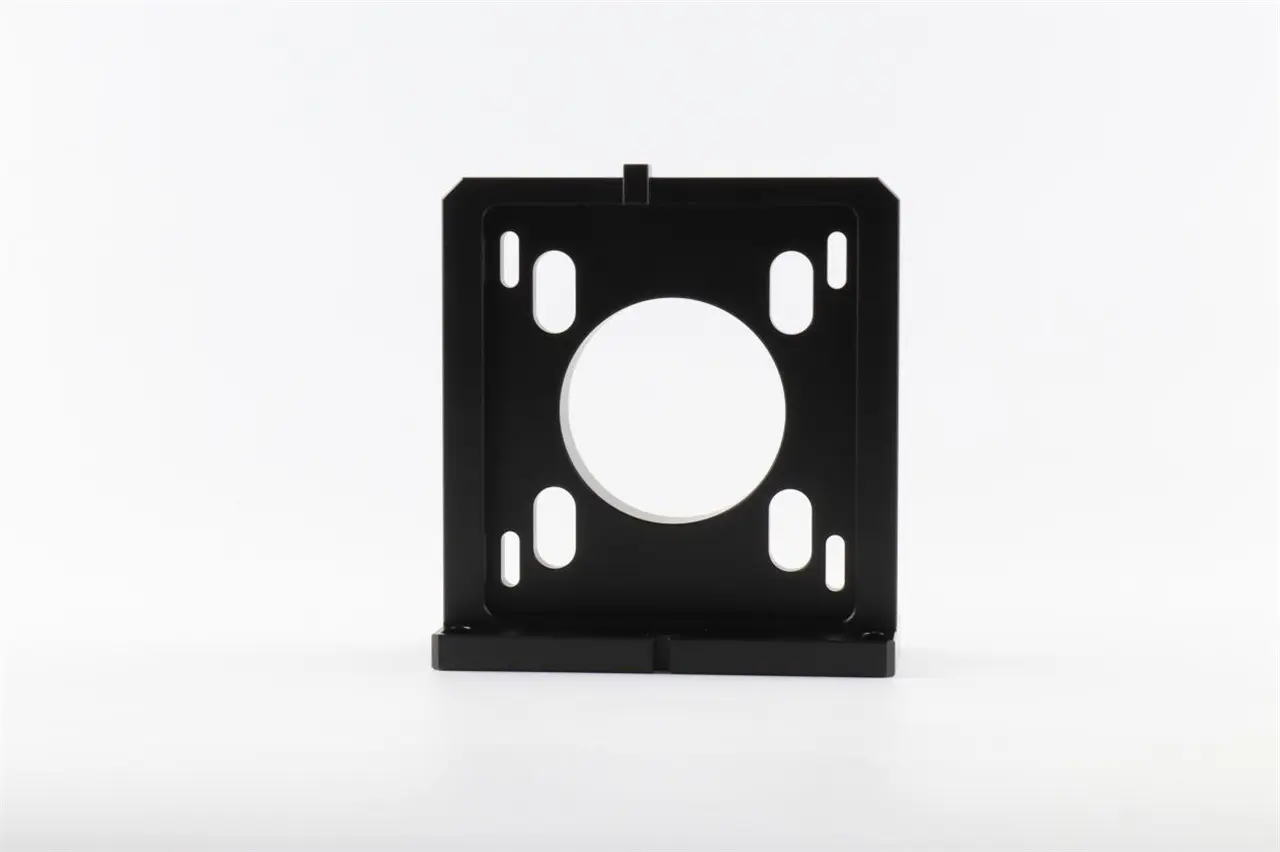

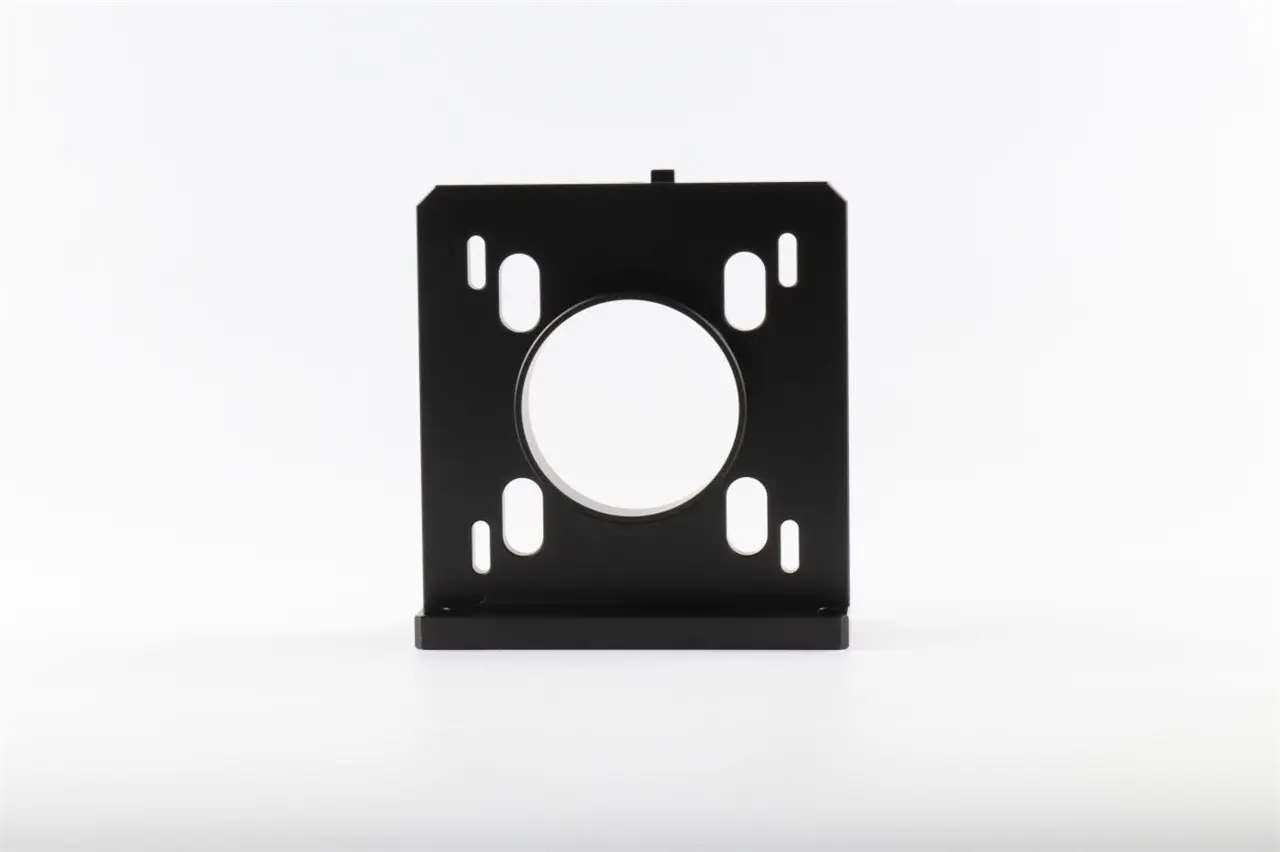

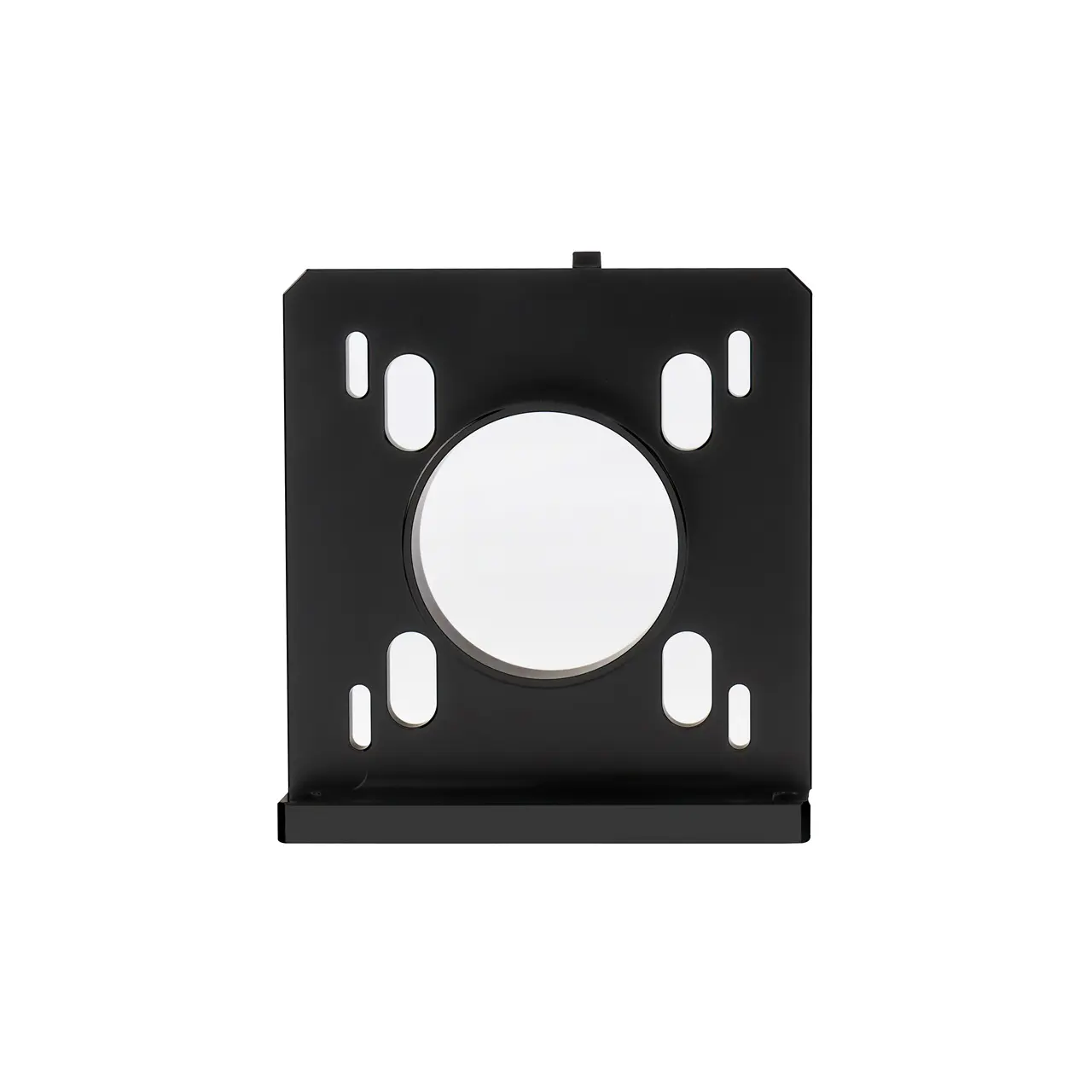

The 9K camera base is a critical structural component in optical equipment, serving as the mounting foundation for key optical elements. With an overall block-like shape measuring 108 × 116 × 51 mm, the base features a central large circular hole with an integrated groove, precisely engineered to accommodate optical lenses.
The distance between the circular hole (and groove) to the side edge is strictly maintained at 60 ± 0.01 mm, ensuring highly accurate lens positioning. This tight tolerance is crucial for maintaining optical path precision, directly impacting the performance and reliability of the entire system.
Surrounding the main structure are various auxiliary holes and slots, including elongated oval holes and square recesses. These features enable secure fastening with bolts and connectors, allowing the base to integrate seamlessly with other optical or mechanical components.
To further enhance durability, the surface is treated with black zinc plating, which not only provides a distinctive appearance but also improves corrosion resistance, ensuring stable performance and extended service life in complex working environments.
Manufacturing Challenges
Ultra-High Positional Accuracy
Maintaining 60 ± 0.01 mm tolerance for lens installation surfaces.
Complex Geometry
Multiple shapes of holes and slots (oval, square, round) require precise multi-axis machining.
Surface Treatment Integration
Black zinc plating must retain both functional durability and aesthetic quality.
Our Solutions
Precision CNC Machining
Ensures dimensional accuracy across all features, especially lens mounting interfaces.
Tight Tolerance Control
Real-time measurement systems maintain ±0.01 mm positional accuracy.
Advanced Surface Treatment
Black zinc plating applied under controlled processes enhances both appearance and corrosion resistance.
Quality Assurance
Every 9K camera base undergoes:
Dimensional Inspection – verification of critical 60 ± 0.01 mm lens positioning.
Geometric Accuracy Checks – ensuring slot and hole shapes conform to design.
Surface Integrity Testing – confirming plating uniformity and corrosion resistance.
Application Value
Optical Equipment – precise alignment ensures reliable optical path performance.
Imaging Systems – stable base for accurate and durable lens integration.
High-End Instruments – corrosion-resistant structure ensures long-term stability.
